Job Order
Overview
Production will support following documents

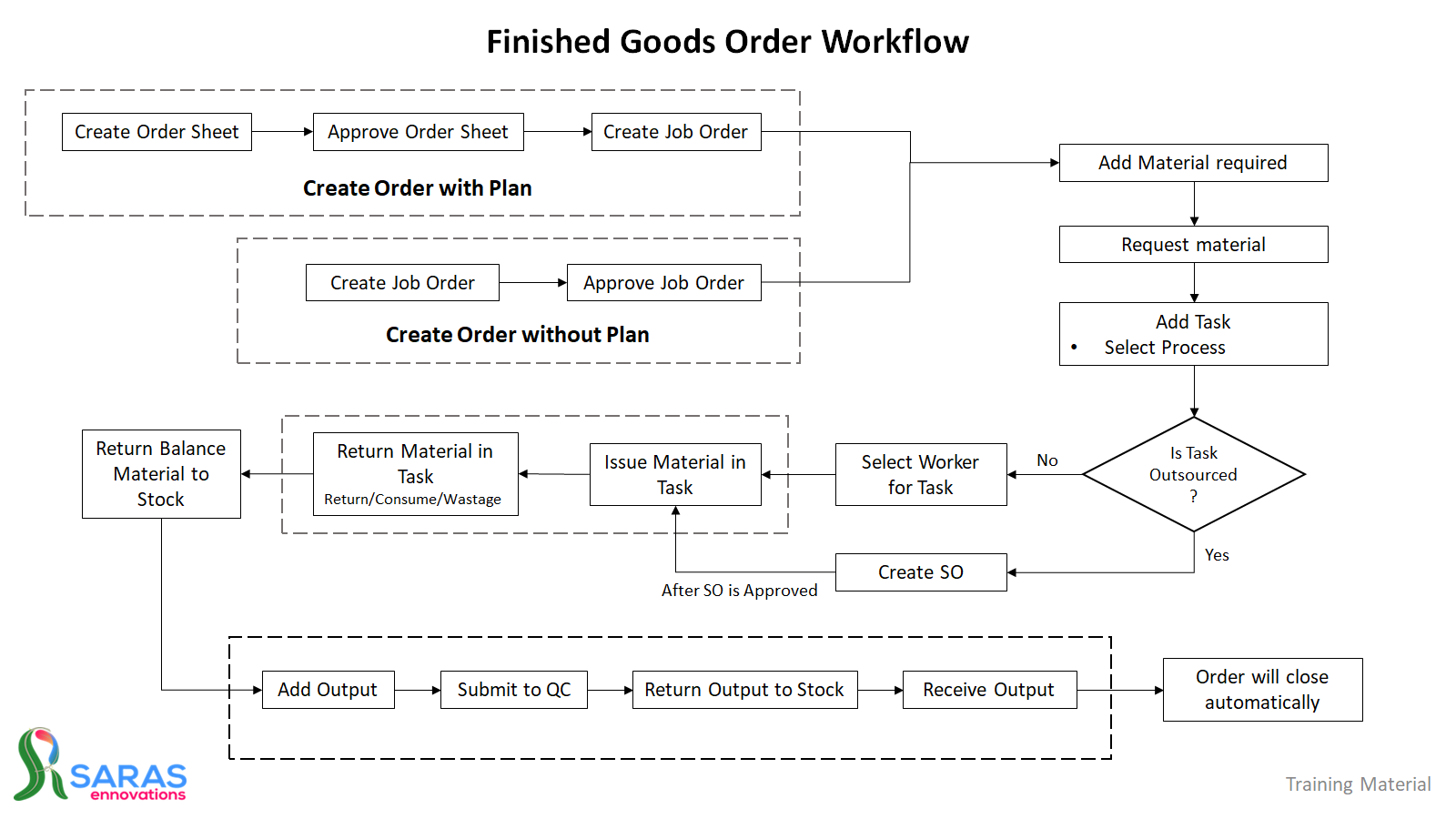

- Finished Goods Jobs: To produce inventory of finished goods
- Minimum Stock Production: To produce inventory of semi finished goods

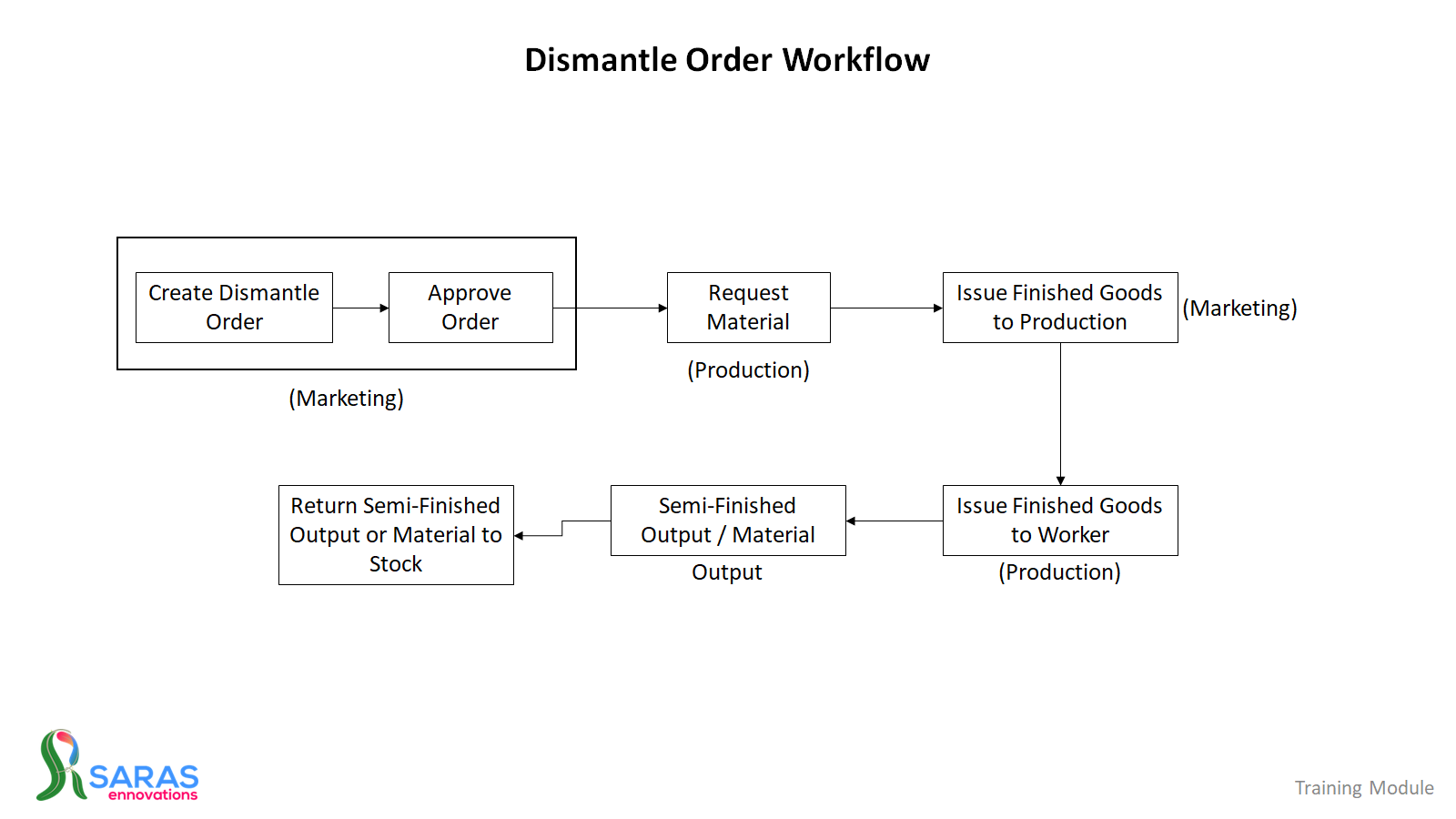

- Dismantle production: To reverse engineer the produced goods and return the extracted material back to the inventory

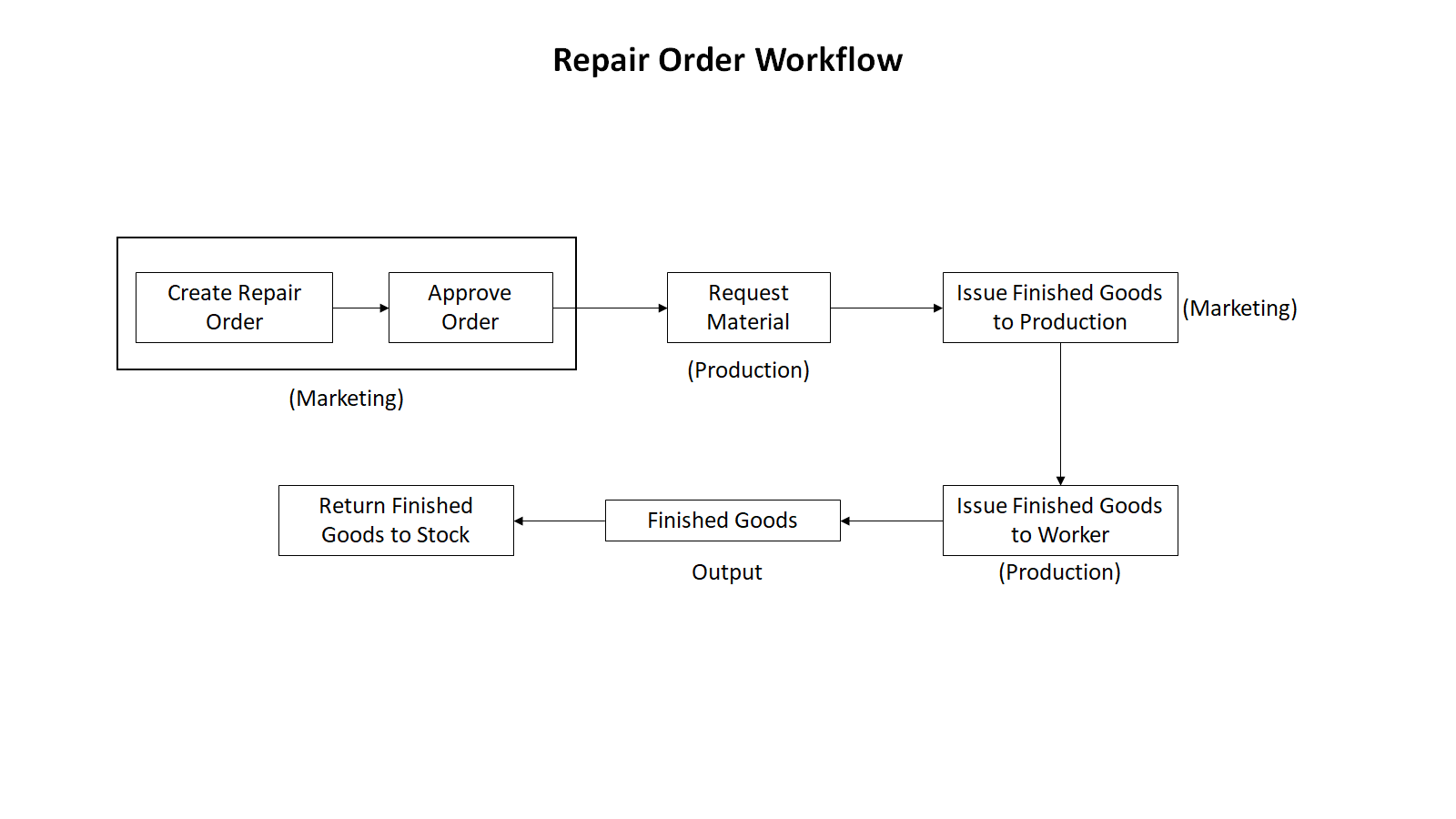

- Repair Order: To repair a returned finished good, the list of material will be according to the part to repair
- Multiple Item: To create Job Order that produces multiple outputs. eg: Casting orders producing more than 1 item in a single tray
Finished goods job can be against customer if it is based on customer order.
<html> <div class=“mxgraph” style=“max-width:100%;border:1px solid transparent;” data-mxgraph=“{"highlight":"#0000ff","nav":true,"resize":true,"toolbar":"zoom layers lightbox","edit":"_blank","xml":"<mxfile host=\"Electron\" modified=\"2020-05-20T12:33:24.657Z\" agent=\"Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_4) AppleWebKit/537.36 (KHTML, like Gecko) draw.io/12.4.2 Chrome/78.0.3904.130 Electron/7.1.4 Safari/537.36\" etag=\"mK1eeL3rWL4XjE2lnBp6\" version=\"12.4.2\" type=\"device\" pages=\"2\"><diagram id=\"r5GKNUvXnWAmbjy5xJS-\" name=\"ProcessFlow\">7ZtdW+I4FIB/DZfj0zb94nIEXd3V0R11da/2CW2ADG3TSVOB+fWbtEk/aMUvCozihTSHJG3Om5Nzchp6YBAu/qAwnl4SHwU9Q/MXPTDsGUbftPl/IVjmAsewcsGEYj8X6aXgBv9CUqhJaYp9lNQqMkIChuO60CNRhDxWk0FKybxebUyC+l1jOEENwY0Hg6b0HvtsmktdwynlZwhPpurOut3PvwmhqixHkkyhT+YVETjpgQElhOVX4WKAAqE7pRfjLBjQ8bU5S6/1H5Zn/tT05Ze8s9PXNCmGQFHE3tz1BIGTi6u/7vRv9vmdkxqRZj/IJtojDFKpr2tK/NRjmERcfkV9RPnnacAHLpQvCryGh5KEQ83VwpZK1wwt+PMdT1kYcIHOLxNGyQwNSMBbgmFEIl7zeIyDYEUEAzyJeNHjI+R3BMePiDLMKX6VX4TY98VtjudTzNBNDD1xzzmfslxGSRr5SIxTE92TiMl5aBRl+ZBSlaJ3tFiZIM9oVy+Qc1NBJESMLnk72YuyCmklas7MyynnOLLKtDLdTFkPJgqS6rgkyS8kzFeA1RtgG7TqWmvTawVkV3oDWk1vbpvetBa9uV0pznhecWpuXsARCq5JgjNrAcMRYYyEYtarlUIo1ofJNNOy3jbPKypenfKMxIUFqaVLz3uPxZOEi4lYsY9C4s3S+CiEVHwEODOouuH1DNDP/sTzYIo8+cQRoaLbzuhyeM/hNbZKFxzobo6uBcB+0bU7o6vtB90trcK6br5sGTa6Iuk0SA64F6ckCLJ45FwQGAtftcchSOchR79fo9ZvQjOUhW4FmtuAdh498hGS7KlvKYwSmK1Nex05do3NssB+Yes3sKmwX9rcZ6ZlmvsFS2/u2HqGHQgcI34xEReXkOsWQ9HXMYxm6nt+v6JK0YY+LblJQ+6XhC5wxHd+fD+cbwrJON8dq3vEAYyySj0x6lNRI2XFNd/XJ2kYy7a5bA4TJrbtqvzTEwkGxCAOil1m1ifJJ+J7Ni7VSchd6XiMbM9rc7K+0x9pWodO1llxsnYzXNLbnKyub2AyuclDis6uv56Fd/jSg/hPe5YoL1tRLfInSNmUiB7JhEQwOCmlKzZY1rkgIuTJVP4DMbaUO3CYMlIHghaYPVSu/xVdHVmyNFzInrPCUhX4OrR8qBYqrUSxbJaVVLt8fGJQbwDJFUNS6qF11qgyWpBOEFtX0WyfGhQF3Kwe64+3cc7ugfPmObdqWtsl5v5OMP/uyJ5YtLeDTC3tB2avYgZ2ykw/MHsDM2NLzP4zL20Xnkbf0ZfFrZ1Myf0/A5X3240HVG7uVR5Q33/MazYou+JsHjhvnnOrpneK2Tpg3hLmbUVHrTe3d+pof1dk23K0a59yXX5KHiDo1fL4b8xR4TAOUJZ9KnrSOFE+Mt8v8kvIxyIhFZcHFzQY+VkWK8rzUDhJ0jIfRRFLaZmuqqewsvQXm6J6EixPWsl81fPPPSd0hqOJyPRw7kkl/fV8W5KyOEuwqSYbTI/5FnJ9sy095hojYNsdpseA8YL8mNuSHwPdHaIwG5O5kls9l3Mmm273HOiGU5U+RO64NVVpey4ajTtkYTn9I6d+okUHzstw2F1lK5uZ7wqM78pkx5SEn4GHoe+aR3Olv0Eh5pJTHOHsvbnCkl1+GjD9XYMxGmAGNQ+W+757mDCk/FnFkrL3OLBXnPP7SKhWTumZ1q5RNc8jcePJMMhzmJ/ThoCzazBNz/+V7xTEO1Avi1vLcw2sdq7BhqFQdDRK4tbgLY84BcvRsgxJ6wHsCtb9eNveGX1Lr6G3gN5AXxyT3fQr9qczG+t3MFcqBB/WovbX7l7+ZksVP+bm3oT/Md51tx0NbH3XvQl7fjqPsR7qLQ4RD1vQ+7kOeVuhjMouL9vj5dvJq1sl+JCsgfVC1k5XrJvxTzMFAdMEvZvzN6LiJx8uS8A5bJkLEIddRElEVVPx45WPSd0E3VHnxfJXNtl3lZ8qgZP/AQ==</diagram></mxfile>"}”></div> <script type=“text/javascript” src=“https://www.draw.io/js/viewer.min.js”></script> </html>
Workflows
Start
- Click on Job Order Menu and then click on Create New button
Job Order Functionalities
| Functionality | Description |
|---|---|
| Create Job Order | Header stores the general information related to the order |
| Input | Input is the list materials required for the Job Order |
| Add Material - Add list of materials required for that order | |
| Plan Material - Request required quantity of materials added from inventory | |
| Return Stock - Return excess stock of materials to inventory | |
| Output | Output is target items produced from that Job Order |
| Expected Output - The output expected from the Job Order | |
| Actual Output - Add item as output after all process completed | |
| Submit to QC - Submit the output for Quality Check | |
| Return SF - Return semi finished goods to inventory | |
| Return Output - Return finished goods to inventory | |
| Task | List of processes executed to complete the Job Order |
| Order Tasks - Manage the list of processes for the Job Order | |
| Create Helper Task - Create Helper Task for Tasks with multiple workers | |

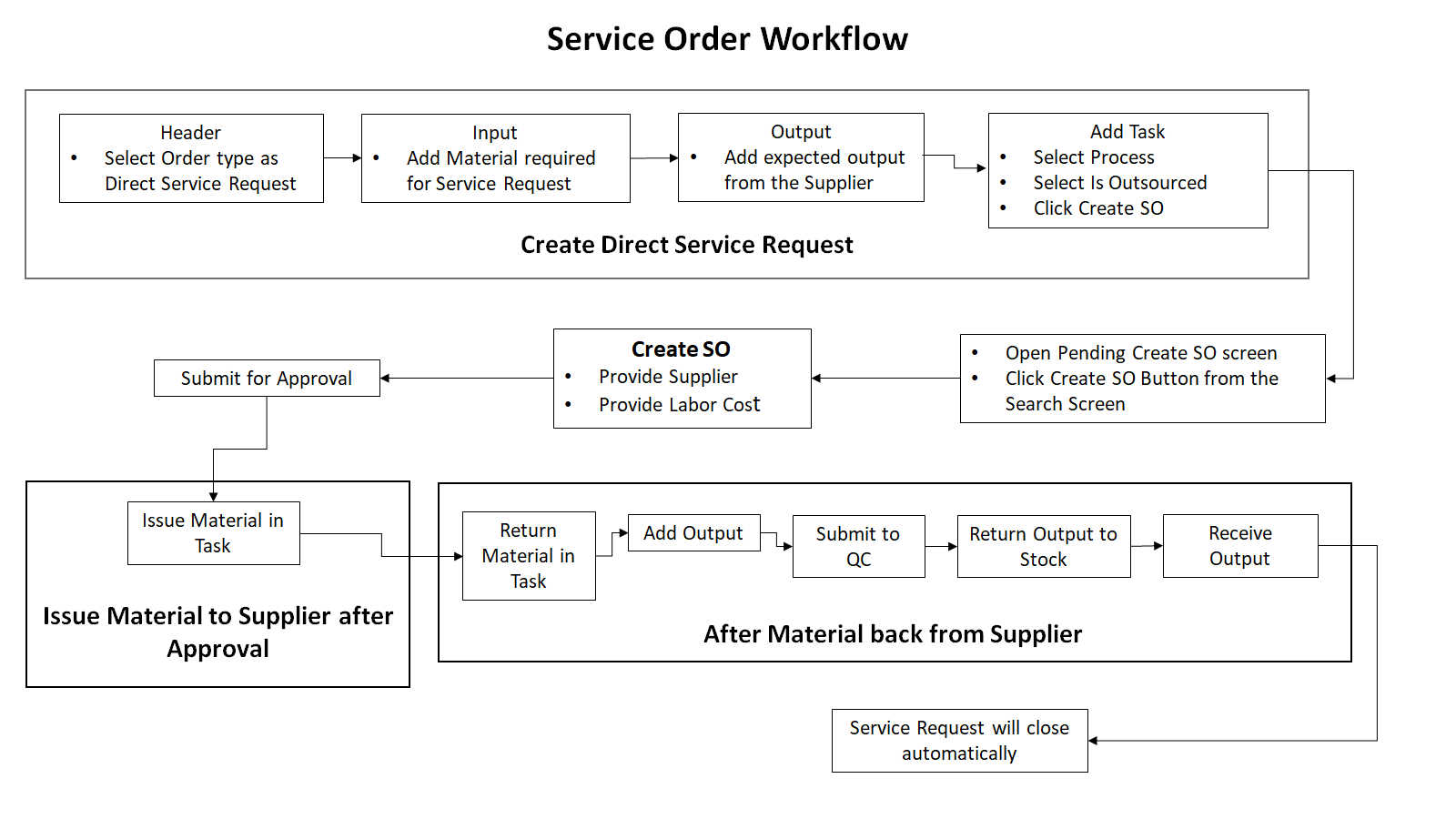

| Service Order - Handle outsourcing of tasks | |
| Issue Material - Issue materials required for the task from inventory | |
| Return Material - After tasks completion, specify the quantity of materials consumed, returned and wasted | |
| Wastage - Details about the materials wasted during the process | |
| Timesheet - Show the work duration of the task | |
| Hold | Pause the task or Job Order |
| Cost Card | Show realtime cost as of now for the Job Order, even if the Job Order is not closed |
